| Valve MM15x21 Presto 12 OPERATION
The urinal faucet allows water to flow at the push of a button. It closes automatically with a constant time delay. BENEFITSDesigned for heavy duty use |
|

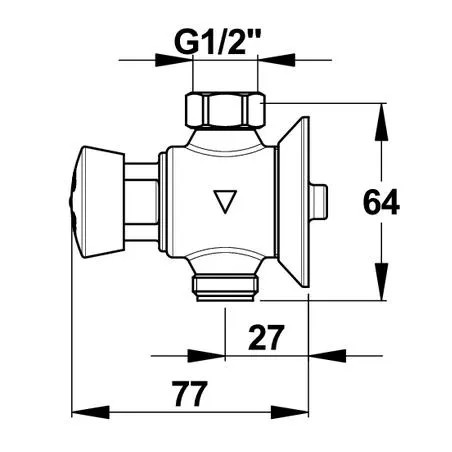

| Technical aspects : Function: This push valve for ordinary urinals or siphonic action and stalls allows the flow of water to be started by simply pressing the push button and closes automatically thanks to a factory-set time delay Flow time : 6 seconds (± 2 seconds) Flow : 9 l/mn at 1 bar (adjustable by the installer depending on the pressure) 4-position flow rate adjustment Material and finish colour : Brass body and components with nickel-chromium treatment Mechanism components made of polyacetal technopolymer (POM) ensuring resistance to corrosion and scaling. Sealing made of Nitrile/EPDM elastomers Standards / Approvals : Brass body and components according to NF EN1982/CC754S, NF EN 12164 / CW614N, NF EN 12165 / CW617N Nickel-Chromium surface treatment according to NF EN12540 Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227 Recommended operating pressure : Minimum recommended: 0.8 bar / maximum recommended: 5 bar Hydraulic supply : In-line power supply Male inlet ½ » (15×21) Straight outlet or ½ » male angle (15×21) |
| Weight (kg) : | 0.4 |
|---|---|
| Packaging: | 1 |
| Main materials : | Brass |
| Warranty: | 2 years |
| Origin: | made in europe |
| EAN13 | 3535770310013 |
