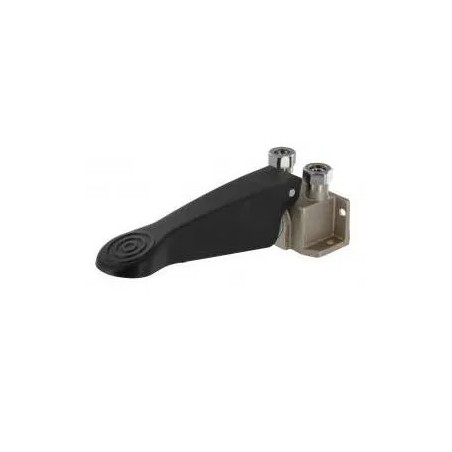

Foot switch Mono Presto sol 520 tendance!

New Version !

Recommended operating pressure :

• 1 to 5 bar

Flow :

• 3 l/mn at 3 bars – 4 position adjustment
• Anti-water hammer device

Flow time :

• 3 to 5 seconds

Operation :

• By pressing the pedal

Hydraulic supply :

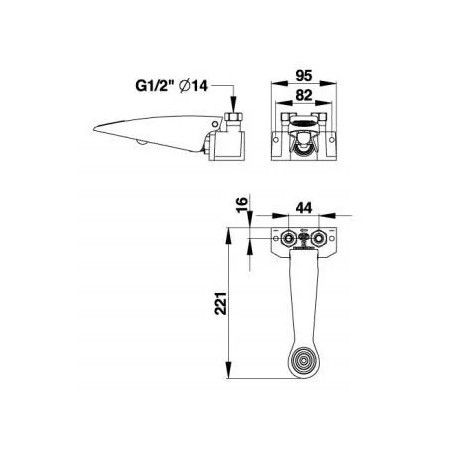

• G 1/2 » (15×21) male inlet in cold, hot or premixed water

Material and finish colour :

• Brass body and components with nickel-chromium treatment
• Technical polymer

Thermal resistance :

• This valve resists a temperature of 75°C for 30 minutes in thermal shocks

Delivered with :

• 1 Nut seal
• 1 Connection nut
• 1 Nut for 12×14 mm tube
• Installation instructions

Standards / Approvals :

• Acoustic class II
• Chrome plated brass body conforming to NF EN1982 / NF EN12164 / NF EN12165 standards
• Nickel-Chromium surface treatment according to NF EN12540
• Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
